Designed for reliability and high performance, each product ensures exceptional value, delivering long-lasting solutions you can trust.

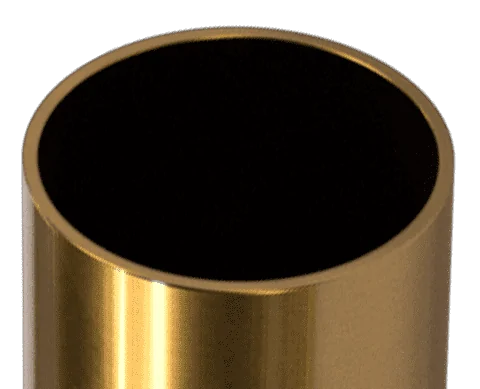

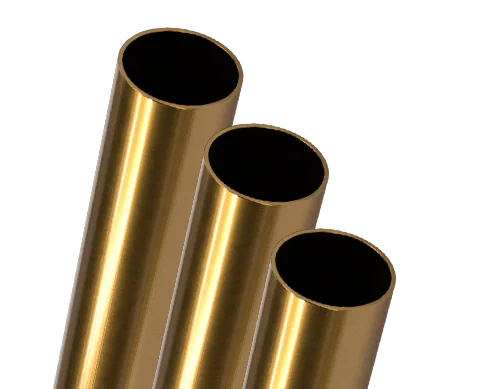

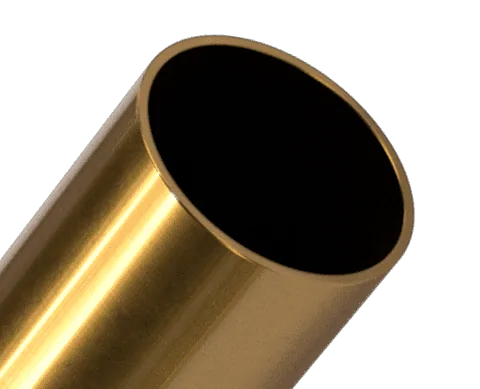

Seamless brass tubes are produced in various shapes and tempers and are available as cold drawn, annealed or suitable for redrawing.
CW508L, CW511L, CW507L. Other alloys upon request
Hard, Half Hard, Soft. Tubes are delivered stress relieved upon customer’s request.
Bundles or wooden cases.
THICKNESS (mm) | DIAMETER (mm) |
---|---|
0,40- 0,44 | 5,70 – 32,00 |
0,45- 0,49 | 4,75 – 40,00 |
0,50- 0,54 | 4,75 – 50,00 |
0,55- 0,59 | 4,75 – 55,00 |
0,60- 0,64 | 4,75 – 57,15 |
0,65- 0,74 | 4,75 – 60,00 |
0,75- 0,84 | 4,75 – 80,00 |
0,85- 0,94 | 4,75 – 80,00 |
0,95- 1,20 | 4,75 – 80,00 |
1,21 – 1,50 | 6,00 – 95,00 |
1,51 – 2,00 | 8,00 – 95,00 |
2,01 – 2,25 | 10,00 – 95,00 |
2,26- 2,40 | 15,00 – 95,00 |
2,41 – 3,00 | 20,00 – 95,00 |
3,01 – 3,50 | 27,00 – 95,00 |
3,51 – 4,00 | 30,00 – 95,00 |
4,01 – 4,50 | 35,00 – 95,00 |
4,51 – 5,00 | 40,00 – 95,00 |
Sectors of use
