Learn more about the product

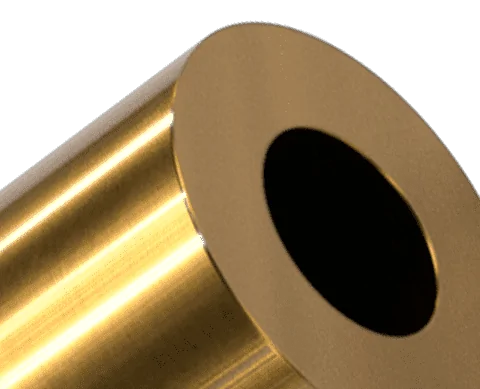

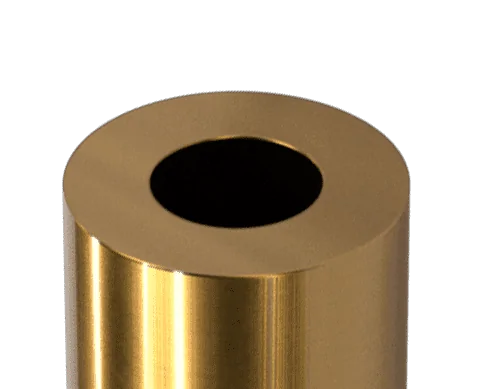

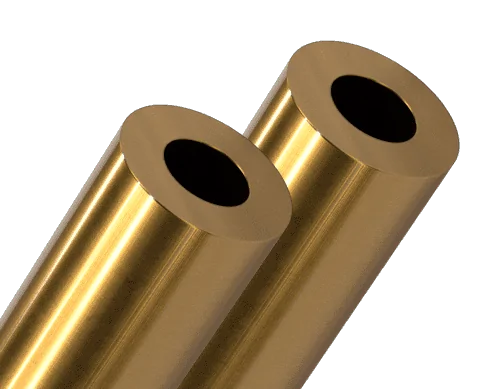

Hollow brass rods are produced in variety of copper alloys mainly for the free-machining applications. Hollow brass rods are available in various outer diameters, wall thicknesses and shapes, both external and internal with shaped ends upon agreement.
ALLOYS
CW617N, CW614N. Other alloys upon request.
TEMPER
Hollow rods are delivered thermally stress relieved.
PACKING
Bundles
CHAMFERING
From 15 mm up to 65 mm in diameter.
| DIA | MINIMUM THICKNESS (MM) | AF – Hex | PROCESS |
|---|---|---|---|
| DIA = 15-30 | 3,0 | AF = 16 – 30 | Drawn (min. I.D. 8 mm) |
| DIA = 31-40 | 3,5 | AF = 31 – 40 | Drawn (min. I.D. 8 mm) |
| DIA = 41-48 | 4,0 | AF = 41 – 50 | Drawn (min. I.D. 8 mm) |
| DIA = 49-60 | 5,0 | N/A | Drawn (min. I.D. 8 mm) |
| DIA > 70 | 15,0 | N/A | Extruded (max.I.D. 58mm) |
