START NOWTube Heat Transfer Laboratory
HALCOR established the Tube Heat Transfer Laboratory dedicated in performance measurement of inner grooved tubes and R&D of heat-exchangers tubes technical support of heat exchanger manufactures.
The Tube Heat Transfer Laboratory is located within Halcor’s Oinofyta plant, where TALOS® Inner-Groove Tubes (IGT) tubes are manufactured according to international standards and customer specifications.
IGT seamless copper tubes feature internal grooves whose geometry significantly enhances the heat transfer performance of the final product. Typical applications of IGT copper tubes include fin-and-tube condenser and evaporator coils for air-conditioning, refrigeration, chiller, and heat-pump applications.
HALCOR’s production technology for TALOS® IGT copper tubes enables the manufacture of advanced inner-groove designs for a complete range of sizes, from 16mm outside diameter down to the latest generation microgroove™ tubes with an outside diameter of 4mm or less, being one of the few manufacturers worldwide to have this capability.
- Measure the performance of different IGT designs.
- Build a unique library of experimental data of different IGTs.
- Provide technical support to heat exchanger manufacturers.
- Develop designs of IGT for tailored applications.

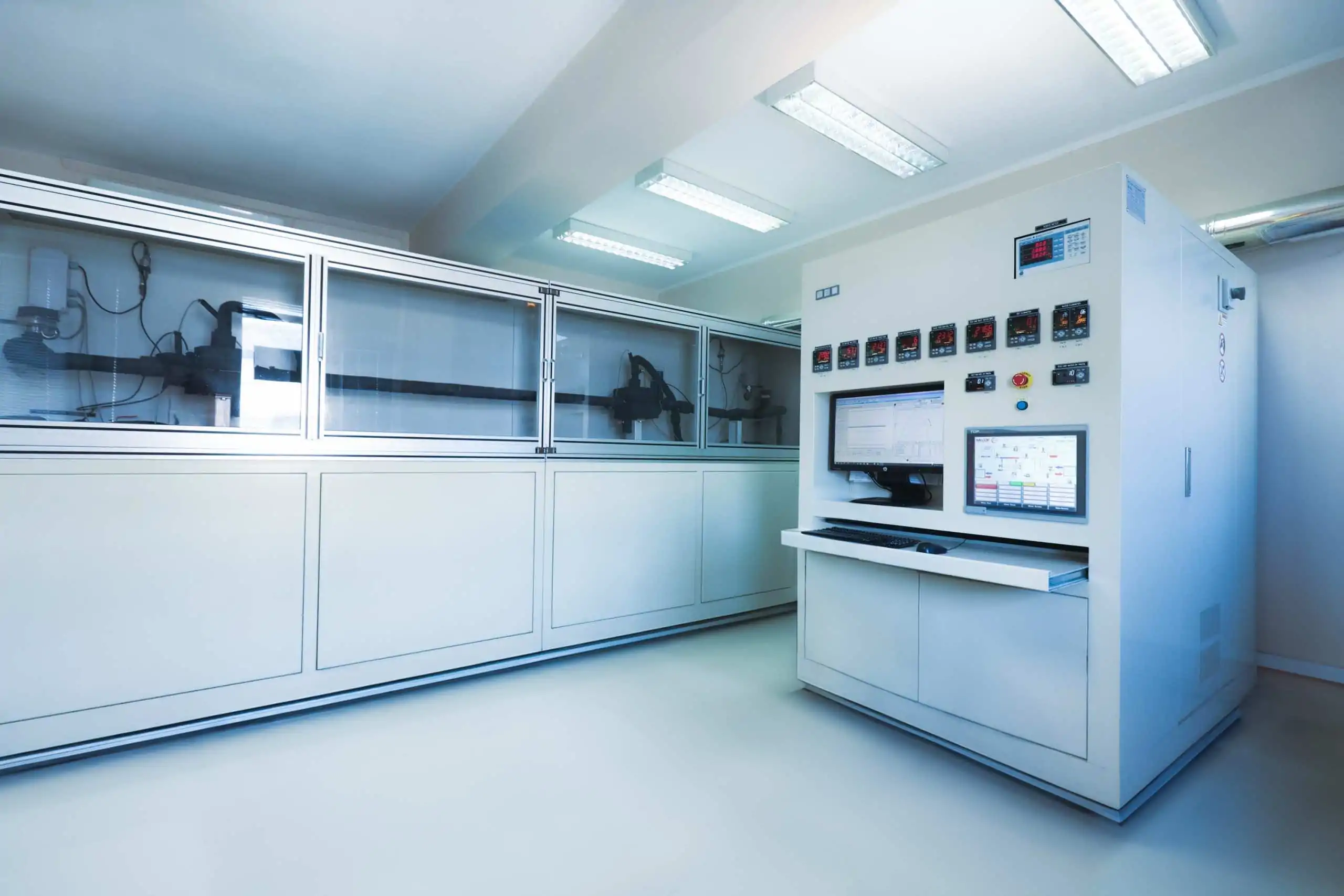

The equipment of the Tube Heat Transfer Laboratory was specially designed to enable measurements of the heat transfer performance of TALOS® IGT tubes under fully controlled test conditions.

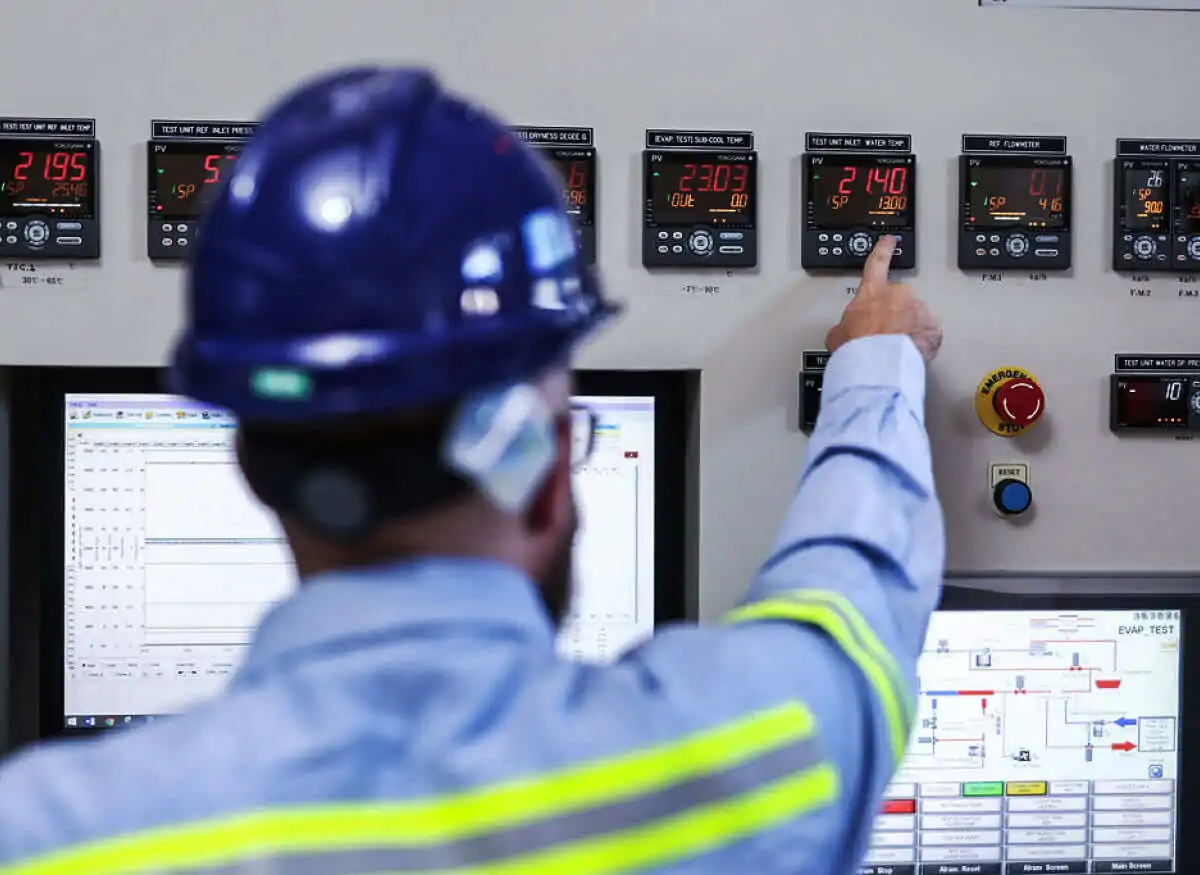

Critical features, such as, the heat transfer coefficient and the pressure drop, are measured using a sophisticated system for condensation and evaporation of HFC and HFOrefrigerants. The flow and thermal parameters are programmed to simulate specific operating conditions, such as, refrigerant flow rate, saturation temperature, vapor quality, thermal capacity, etc. and thus allow Halcor’s engineers to study the influence of the inner-groove design.
The Tube Heat Transfer Laboratory gives Halcor the unique capability to incorporate the test results in a complete framework of technical support to manufacturers of heat-exchangers, with the purpose of optimizing their heat-exchanger design for any of the following:
- Improved efficiency.
- Higher capacity.
- Reduction of raw material.
- Compact heat-exchanger size.
- Reduction of refrigerant charge.
The Tube Heat Transfer Laboratory offers a superior advantage to Halcor’s clients by giving them the opportunity to establish a mutually beneficial co-operation within an integrated support and product development framework.
